Electron Microscope

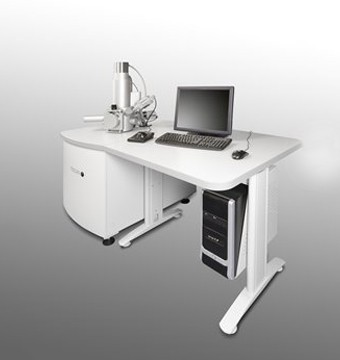

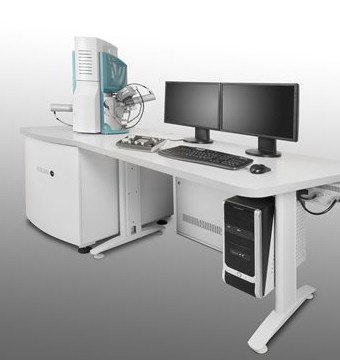

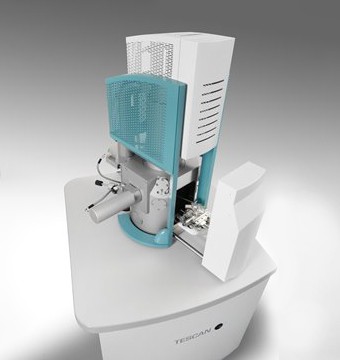

VEGA3 - 3rd Generation of VEGA SEMs

VEGA3 is a thermionic emission SEM system that comes either with tungsten heated filament or lanthanum hexaboride (LaB6) as electron source.


VEGA3 - 3rd Generation of VEGA SEMs

PRODUCT BROCHURE

3rd Generation of VEGA SEMs brochure

Download VEGA3 Brochure!

PDF – 6.1 MB

KEY FEATURES

  • Unique four-lens Wide Field Optics™ design offering the variety of working and displaying modes embodying the TESCAN proprietary Intermediate Lens (IML) for the beam aperture optimisation.
  • The proprietary Intermediate Lens (IML) that works as an „Aperture Changer“ makes the exchange of the effective final aperture in an electromagnetic way
  • Real time In-Flight Beam Tracing™ for the performance and beam optimisation integrating the well-established software Electron Optical Design
  • The column construction, without any mechanical centring elements, allows fully automated column set-up and alignment
  • Superior specimen handling using a fully motorized compucentric stage

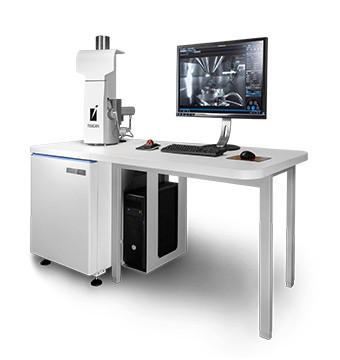

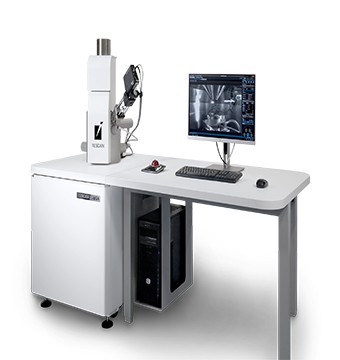

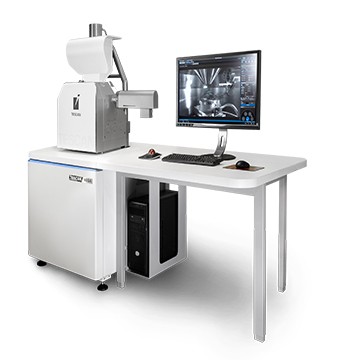

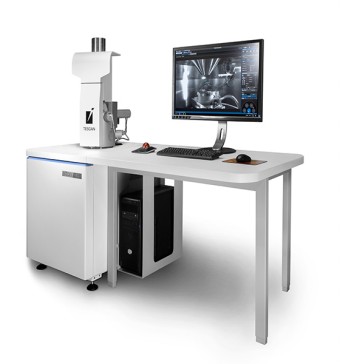

  • VEGA3 microscopes can be configured in 4 different chamber sizes: SB, LM, XM, and GM. These chambers are fitted with a variety of ports and designed with optimal geometry for EDX, WDX and EBSD analysis.

Specification

Electron GunTungsten heated cathode / optionally LaB6
Resolution
SE3nm at 30keV / 2nm at 30keV
BSE3.5nm at 30keV / 2.5nm at 30keV
Magnification3x - 1,000,000x (SB), 2x - 1,000,000x (LM),
1x - 1,000,000x (XM/GM)
Accelerating Voltage200eV to 30keV
Probe Current1pA to 2μA
Image size16,384 x 16,384 pixels


Application

Semiconductors & Microelectronics

Semiconductors & Microelectronics

Material Science

Material Sciences

Life Sciences

Life Sciences

Earth Sciences
